Use with Studio Pro

Description

The Extract Document Data activity is your direct link to IntelliDocs. You can use it in your workflow to apply Intelligent Document Processing (IDP) with just a few clicks.

Prerequisites

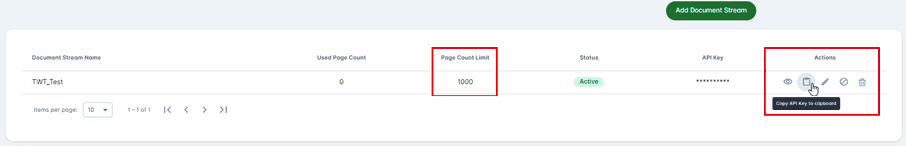

To use this activity, you need to set up a Document Stream on User Portal → Automation Hub → IntelliDocs to get the API Key. Make sure that you have pages available to use.

For more information about this, check IntelliDocs Overview.

How to use it

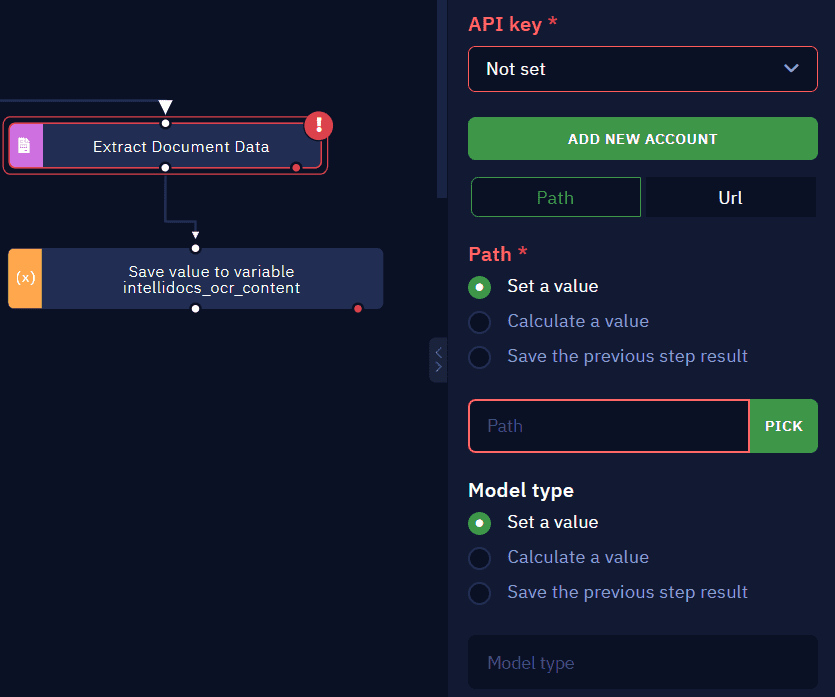

To start using IntelliDocs in Studio Pro, add the Extract Document Data activity to your canvas. You find it in Activities → Document Processing → IntelliDocs.

Double-click on it or drag it to your canvas. Notice that the activity is automatically followed by a variable to receive its output data.

You must set its properties as follows.

1. Insert your API key

Click on "Add New Account" to create one.

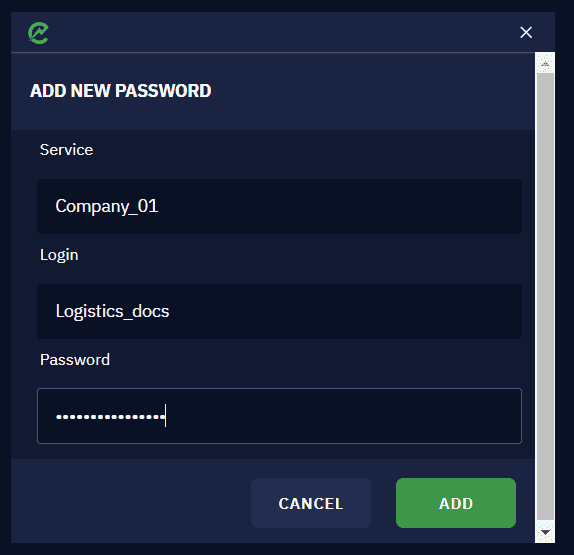

Fill the pop-up as follows:

Service — Define a name to your service (e.g. the Document Stream name)
Login — Use this field as a comment about the service
Password — Enter the API Key

Bear in mind that:

The three fields above are mandatory
You can repeat the same information for Service and Login

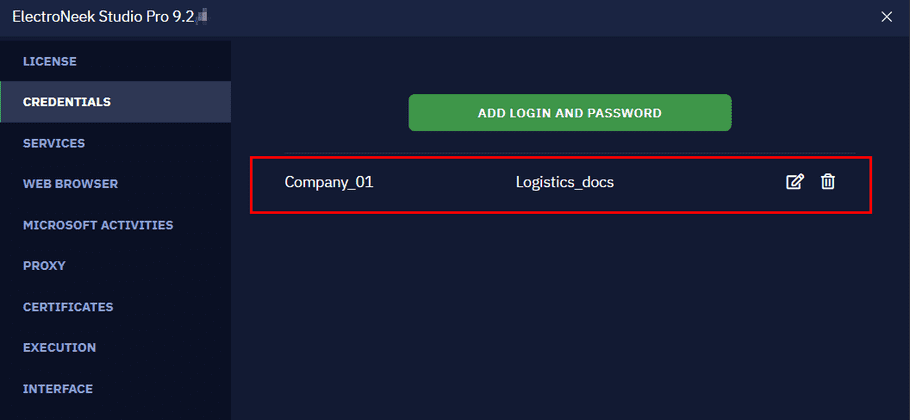

Once you set up the API key for the activity, you can check it out on Settings → Credential Management.

2. Choose the file path

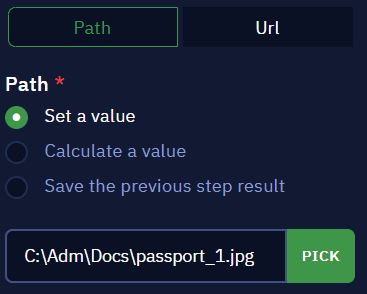

Now, you need to tell the activity where the file you want to process is located. Click on Path for local files or URL for online ones.

Choose Set a value if you are adding the path manually or using the Picker. With Calculate a value, you can use a syntax to define the path. Use Save the previous step result to set the path using the previous activity output.

3. Select the model type (optional)

Finally, you are able to set the Model of the document if needed: finance/invoice, travel/Visa/usa , etc. The same three parameters are available:

Set a value
Calculate a value
Save the previous step result

Note that this parameter is not mandatory. For more Document Models and Types, go to our API documentation.
